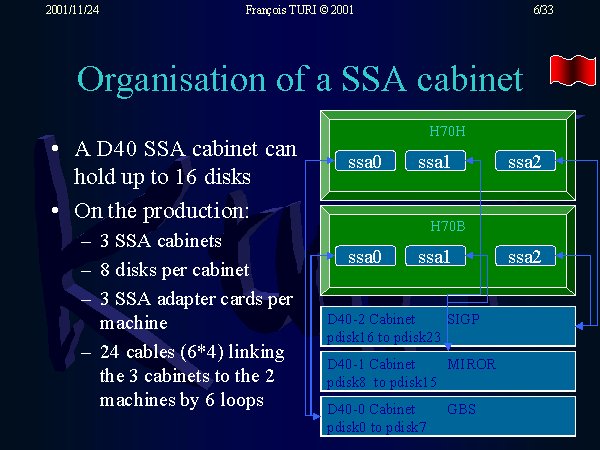

 The SSA disks are plugged into a cabinet linked individually to each H70 by an individual SSA card. They are HOT SWAPS. They are visible from both members of the cluster but active on one machine at a time. The disks are numbered by card, loop and serial number. A pdisk can be composed of multiple physical disks using SSA ‘raid’ hard-coded technology.

Slide 5 of 33
